Thermal

Task of the thermal subsystem

To make sure that all components and equipment can work in the temperature range they are designed for

Transferring Heat

Conductivity
- Transfer thermal energy within one material or between material in contact.
- Response to a temperature gradient
- $\frac{Q}{t} = k A \frac{Δ T}{d}$
Convection (No convection in space)
- Transfer of thermal energy from one place to another due to the movement of fluid.
- $\dot{Q} = h A (T - T_{f})$
Radiation
- Transfer of energy by means of electromagnetic radiation
- No medium needed
- $\dot{Q} = ϵ σ A T^{4}$

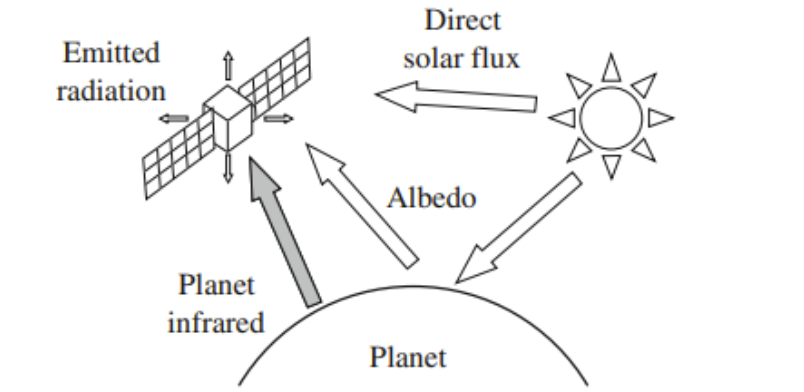

Radiant Energy

q_{solar} + q_{albedo} + q_{planetshine} + Q_{generated} = Q_{stored} + Q_{out,rad}

$q_{solar}$ Direct solar flux
$q_{albedo}$ Reflected sun energy
$q_{planetshine}$ Planetary infrared energy
$Q_{generated}$ Energy generated by the Spacecraft
$Q_{stored}$ Energy contained inside the Spacecraft
$Q_{out,rad}$ Radiated energy to the cold sink of space

Thermal Subsystem-1.png
